Circular Sight Glass,Round Sight Glass,Borosilicate Glass,Quartz Glass
Circular sight glass, also named sight glass disc, circular gauge glass, round sight glass, flat plate circular glass discs, etc, commonly it uses the types of materials as below. We suggest different material according to environmental conditions, for instance work temperature, work pressure, acid and alkali of the media.
1）soda-lime glass-max work temperature 280 °C
2）borosilicate glass- max work temperature 450 °C
3）aluminum-silicate glass- max work temperature 650 °C
4）glass-ceramic- max work temperature 750 °C
5）quartz glass- max work temperature 1100 °C
6）sapphire glass- max work temperature 2000 °C

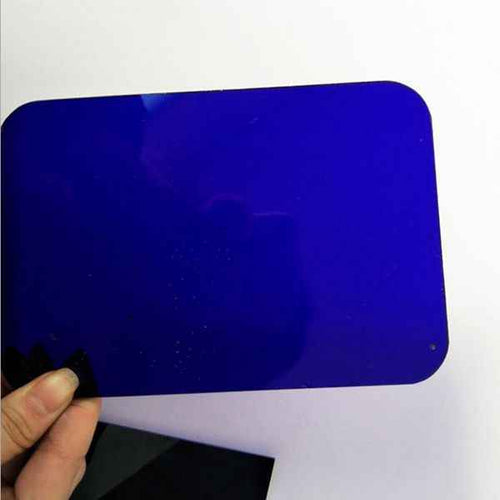

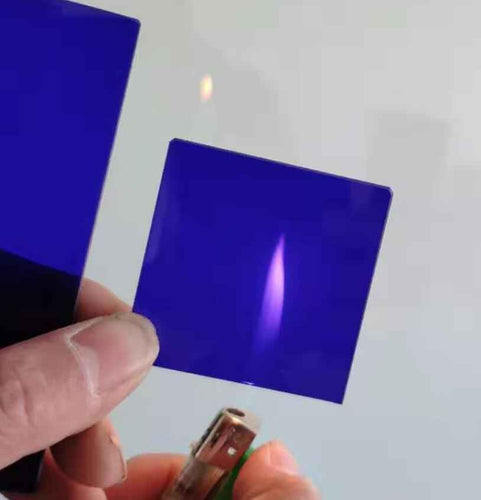

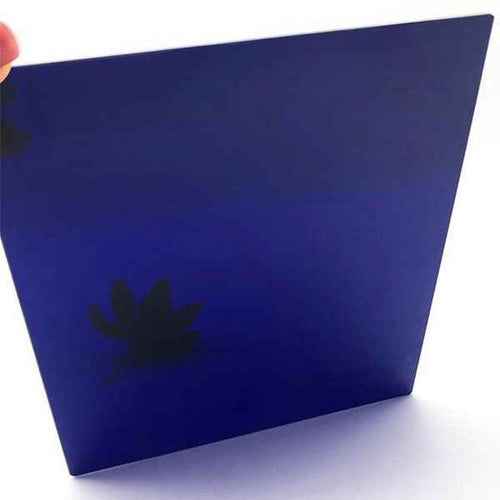

7）cobalt blue glass-flame observation

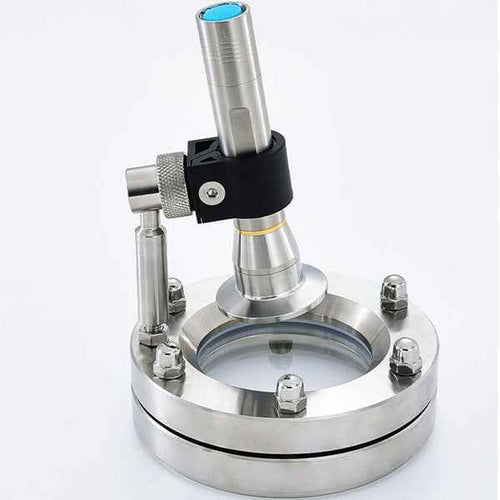

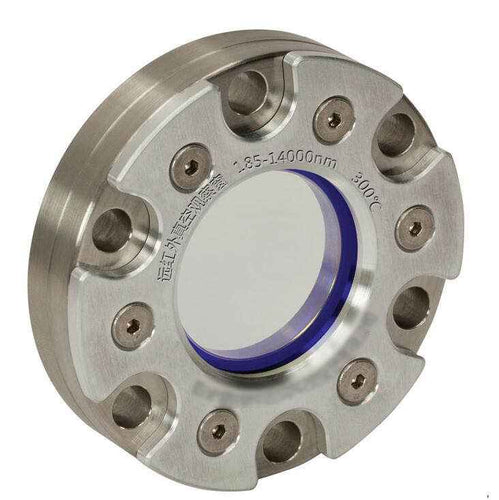

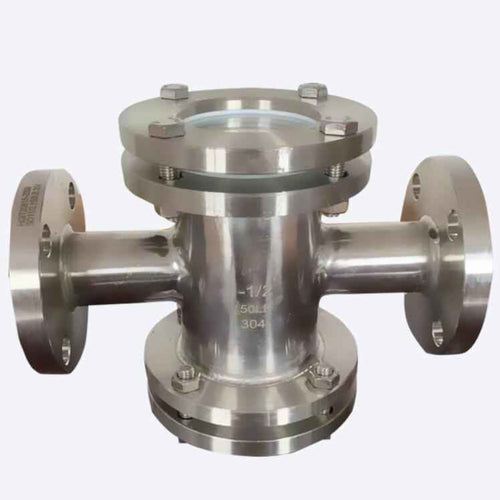

Circular sight glass is commonly used in beer, sugar, chemical, petrol and medicine pipes and flanges for observing the liquid flow and liquid level.
1) For increasing the sight glass strength, the finished glass is often to be tempered and annealed.
2) For increasing the resistance of sight glasses on the aggressiveness of the working environment and in the use of high temperatures and pressures, additional use of mica shield is recommended. If you need the mica shield, graphite gasket, asbestos gasket, pls note it.
Specification
Material: borosilicate glass, aluminosilicate glass and quartz glass, soda-lime glass, sapphire glass.
• Diameter: 5-500 mm.
• Thickness: 1-60 mm.
• Form:
o Clear round shape.
o Round shape with hole in the center.
o Rectangle sight glass
o Oval sight glass
o Step shape
o Circular with central hole
• Max temperature: 2000 °C.
• Max pressure: 500 bars.
• Accessories: gasket and mica shield can also be offered together.
Features
• Stability
Round sight glass has stable chemical property. It can resist acid and alkali, so that it suits to be applied in industry for long life.
• Temperature
Work temperature:280-2000°C
• Pressure
The highest working pressure that the round sight glass can stand is 500 bars.
• Light transmittance
Our round gauge glass has high light transmittance, which can make sure the liquid level or flow clear.
Precautions
*According to the medium, temperature,pressure,etc.The circular sight glass should be inspected and in routine maintenance periodically
*Very be careful of the disintergrating slag of the broken edge.in order to prevent it enter medium,the manufacturer or user should appropriate safety precautions.
