Collection: Level Gauge Sight Glass

  Level Gauge Sight Glass is suitable for direct indication of the medium level in all kinds of towers, tanks, tanks, boxes and other containers. Safety steel ball is installed in the upper and lower valves of the instrument. When the glass is damaged accidentally, the steel ball can automatically close the liquid flow channel under the action of the pressure in the container to prevent the liquid from continuing to flow out. According to the principle of the connector, lead the liquid level of the medium in the container to the external glass level gauge, and read the actual height of the liquid level from the transparent glass surface. Instrument stem seal packing adopts flexible graphite pressure ring, so the sealing performance is better.
  Glass panel level gauge can be divided into: high temperature and high pressure glass panel level gauge, anti-frost type glass panel level gauge, high pressure glass panel level gauge, two-color glass panel level gauge, no blind area glass panel level gauge, high temperature glass panel level gauge, corrosion resistant glass panel level gauge, etc.
Technical parameters
Measuring range (center to center distance L mm) : 300,500,800,1100,1400,1700,2500;
Nominal pressure: 2.5, 4.0, 6.4, 10.0, 16.0MPa;
Operating temperature: -20~380℃
Ball automatic closing pressure: ≥ 0.2mpa;
Heat tracing steam pressure: ≥ 0.6mpa;
Hot steam jacket joint: G 1/2" (external thread);
Liquid material: carbon steel or 1Cr18Ni9Ti
Connecting flange: JB/ T82.2-94, DN20 PN4.0 convex flange;
If other flange standards (such as GB, ANSI, HGJ) are used, please indicate when ordering.

94 products
  • Cushion joint and sealing joint for reflex glass A-5,A-6,B-5
    Regular price
    $0.00
    Sale price
    $0.00
    Regular price
    Unit price
    per
    Sold out
  • Asbestos Gasket Jointing Sheets for level gauge
    Regular price
    $0.00
    Sale price
    $0.00
    Regular price
    Unit price
    per
    Sold out
  • Graphite Gasket for level gauge
    Regular price
    $0.00
    Sale price
    $0.00
    Regular price
    Unit price
    per
    Sold out
  • PTFE Gasket for boiler level gauge
    Regular price
    $0.00
    Sale price
    $0.00
    Regular price
    Unit price
    per
    Sold out
  • Boiler drum level gauge
    Regular price
    $0.00
    Sale price
    $0.00
    Regular price
    Unit price
    per
    Sold out
  • Anticorrosive quartz glass tube level gauge
    Regular price
    $0.00
    Sale price
    $0.00
    Regular price
    Unit price
    per
    Sold out
  • Fluorine lined sight glass
    Regular price
    $0.00
    Sale price
    $0.00
    Regular price
    Unit price
    per
    Sold out
  • Glass Capillary
    Regular price
    $0.00
    Sale price
    $0.00
    Regular price
    Unit price
    per
    Sold out
  • Glass Capillary Tube Quartz glass micrometer small pore capillary quartz capillary glass tube
    Regular price
    $0.00
    Sale price
    $0.00
    Regular price
    Unit price
    per
    Sold out
  • Glass Capillary Tube Blood Collection Tube Medicine Capillary Tube
    Regular price
    $0.00
    Sale price
    $0.00
    Regular price
    Unit price
    per
    Sold out

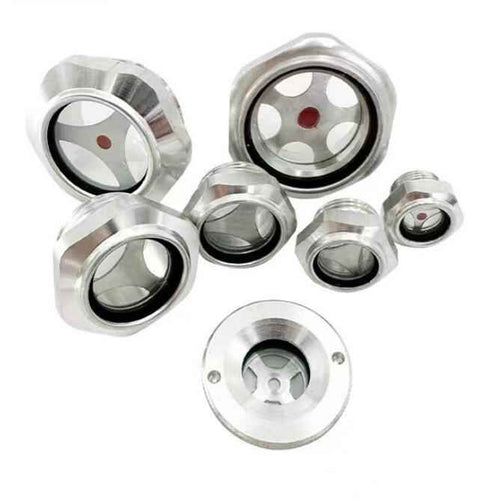

  • Oil Sights Oil Level Glasses Oil Level Sight Gauge Oil Level Indicator
