Collection: Hydraulic Oil Sight Glass Level Gauge Window Float Eye

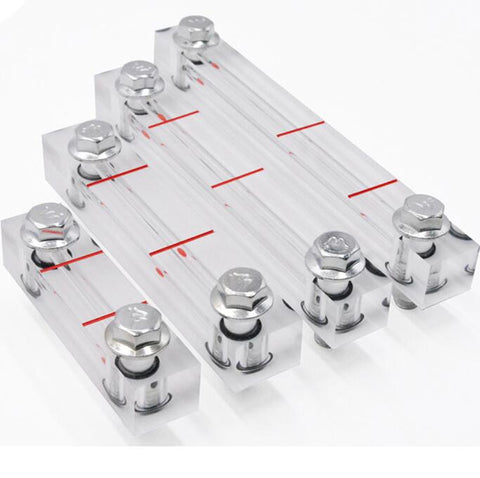

Hydraulic Oil Sight Glass Level Gauge Window Float Eye
The sight glass is held in place with 2x M10 x 1.5 thread bolts which allow oil to flow through them.
Some sizes include a small plastic float ball to aid in reading the level - see 'oil mark' models below. The ball can be removed prior to installation if not wanted.
Neither contain a thermometer.
Features a Max/Min line.
Comes with bolts and washers.
Will fit many types of machine, particularly anything with an Asian brand or engine.
Center to center distance:
50mm,60mm,65mm,80mm.85mm,90mm,94mm,100mm,110mm,120mm,130mm,135mm,140mm,150mm,160mm,170mm,180mm.
1. PMMA material, high permeability, long-term use unchanged yellow.
2. Can be connected for a long time in 120 degrees high temperature environment, no deformation, no cracking.
3. The material body has high toughness, pressure resistance and strong impact resistance.
4. Adopt seamless bonding technology, stronger sealing.
Country of Origin: China
Usage/Application: Industrial

Style

Body size

Screw size

O washer size

LG-50

85*22*20

M10

14*10*2

LG-60

95*22*20

M10

14*10*2

LG-65

100*22*20

M10

14*10*2

LG-80

115*22*20

M10

14*10*2

LG-85

120*22*20

M10

14*10*2

LG-90

125*22*20

M10

14*10*2

LG-94

130*22*20

M10

14*10*2

LG-100

135*22*20

M10

14*10*2

LG-110

145*22*20

M10

14*10*2

LG-120

155*22*20

M10

14*10*2

LG-130

165*22*20

M10

14*10*2

LG-135

170*22*20

M10

14*10*2

LG-140

175*22*20

M10

14*10*2

LG-150

185*22*20

M10

14*10*2

LG-160

195*22*20

M12

17*12*2.5

LG-170

205*22*20

M10

14*10*2

LG-180

215*22*20

M12

17*12*2.5

LG-200

325*22*20

M12

17*12*2.5

 Hydraulic Oil Sight Glass Level Gauge Window Float Eye
