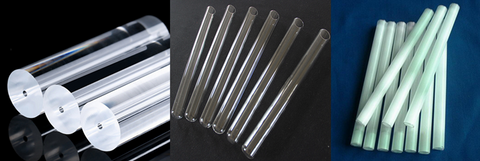

Quartz glass tube includes: transparent quartz tube, opalescent quartz tube, quartz rod, quartz sleeve, quartz piece, quartz instrument, all kinds of quartz bend, spherical quartz tube, special-shaped quartz tube and various color quartz tube.
Transparent quartz tube includes all kinds of common specifications of transparent tube, uv quartz tube, ozone-free quartz tube, etc., the outer diameter range of 1.5-160mm, wall thickness range of 0.5-15mm, length of 10-3000mm.
Transparent quartz tube SiO2 99.9% or more, geometric size, chemical stability, thermal stability, thermal denaturation resistance and crystallization resistance, optical transmittance of 93% or more;The hydroxyl of the dehydroxyl tube is below 10ppm, and the hydroxyl can reach below 5ppm after vacuum dehydroxyl, which is suitable for low hydroxyl products such as high pressure mercury lamp, sodium lamp and metal halide lamp.
Milky white tube is mainly used for heating tube, heating tube, far infrared tube manufacturing;Pearlescent quartz tube opalescent tube adopts new technology, tube surface like pearl surface, performance is better than ordinary opalescent tube, uv can filter the uv spectrum of harmful to human body of 190-320nm wavelength uv county, suitable for the manufacture of environmental protection light source.
Ozonless tube and uv filter tube, can be applied to 253.7nm wavelength of ultraviolet light, is the main raw material of ozonless ultraviolet sterilization lamp, widely used in medical equipment, water treatment, food sanitation sterilization.
Quartz casing diameter range from 8 to 120mm, with single opening, double opening, round head, flat head and other shapes and flaring, shrinking, flanging, grinding and other processing, with high temperature resistance, corrosion resistance, light transmission, moisture-proof, riot and other characteristics,Widely used in aquarium thermostat, disinfection equipment, heating pipe, water treatment, gold lamp and other products manufacturing and environmental protection, health, chemical and other fields.
According to customer requirements, the bubble shell can be connected with capillary, can exhaust, high temperature resistance, good light transmittivity, mainly used for JC, JV, H1-H7, stage lamp and high pressure mercury lamp, sodium lamp, metal halide lamp and other products.
Quartz water jacket is mainly used in printing and packaging processing industry - UV light curing, UV light curing is a very reliable, can replace hot air dryer and other drying technology curing technology, it has been widely used in the printing and packaging processing industry.
Contact us and find you want the OD,WT quartz glass tube.
