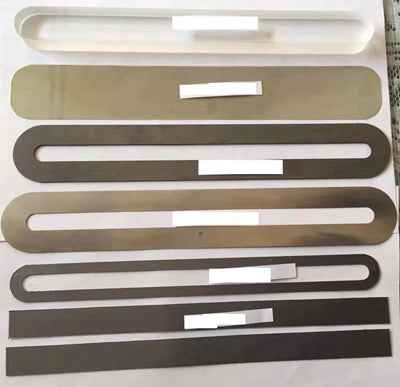

Level Gauge Mica Components is composed of mica sheet, graphite pad, aluminosilicate glass, cushion joint, Monel alloy gasket and protective belt. Our factory is a specialized processing production of mica series products and high pressure boiler water level gauge mica components of professional manufacturers, mica sheet is mined ore direct flake, model complete specifications, professional production and sales of natural mica sheet large natural transparent mica plate, mica specifications, concept of fire, liquid level meter, water meter mica sheet, natural mica thick slices, thin slices. The above products are made of high-quality mica grade a slices after stripping, cutting, processing and punching.
Level Gauge Mica Components is applied to Steam Drum Bi-color Water Gauge Sight Glass in power plant, oil refinery, chemical plant. Transparent, wave, high temperature resistance, corrosion resistance, erosion resistance, insulation, smooth and clear, low loss of high frequency medium, can be peeled and elastic and other characteristics. It can be used in high frequency medium, high temperature vacuum, high temperature and high pressure, strong acid and strong alkali working environment. And transparent, can be peeled, elastic and other characteristics, in the rapid change of temperature and pressure does not affect its chemical properties and optical transparency, so it is thermal power plants, oil refineries, chemical plants and other high pressure steam boiler water level gauge as a protective lining material.
We also offer only mica sheet.
1) mica sheet thickness:
1.5mm,pressure more than 16Mpa.
2.0mm,pressure more than 25Mpa.
2.5mm,pressure more than 32Mpa.
2) mica sheet length tolerance less 0.5mm,width tolerance less 0.3mm
3) bulls eye level gauge mica sheet tolerance less 0.2mm,thickness 0.1-0.25mm.
4) burr less 3mm,less corner length less 8mm,less 2 pcs
Level Gauge Mica Components
Aluminosilicate glass size:
80*24*17, 80*24*20.7, 80*24*21, 105*24*21, 106*24*21, 108*24*20.7, 108*24*21, 118*24*21, 130*24*21, 130*26*19, 140*34*17, 265*26*19

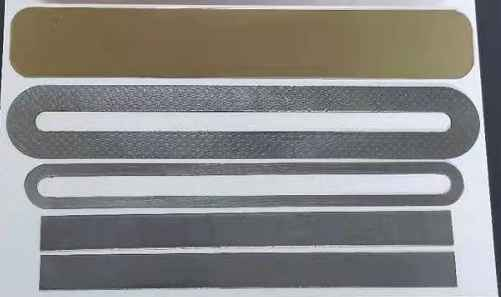

1) strip level gauge mica components

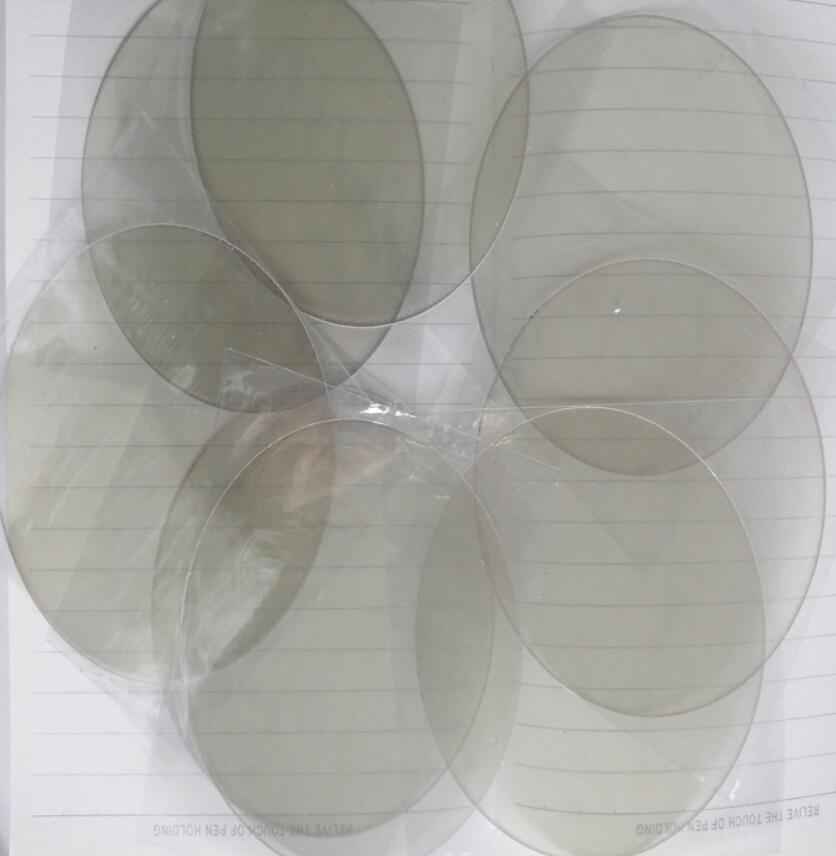

2) bull eye level gauge mica componets
It is made following below style in china, at the same time, we also produce it according to our clients’ customization.
